Carriage Bolts

Carriage BoltsHYST QCCO China Steel specializes in Carriage Bolts, and we can offer a complete range of sizes, materials, standards, and grades.
Available Materials:
Steel, Corten Steel
A193 B7/A194 2H; A193 B7M/A194 2HM; A320 L7/A194 7; A320 L7M/A194 7M
International Standards:
DIN 6921, ISO 4162, EN 1662, EN 1665, JIS B 1189, ASME B 18.2.3.4M, ASME B 18.2.3.9M, IFI-111

Mechanical Properties:
Metric Grades : 4.6, 8.8, 10.9, 12.9
from 1/4 to 4 inches (length to 20-inch max)
Surface: black; cadmium-plated; teflon-plated

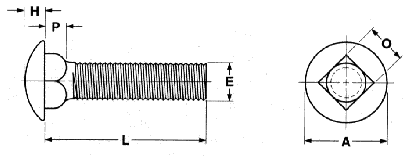

Draws
Standard Sizes:
Item Size Item Size
M06 6 ~ 150 mm  1/4 " 1/2 ~ 6 "
M08 10 ~ 200 mm  5/16 " 1/2 ~ 6 "
M10 12 ~ 300 mm  3/8 " 1/2 ~ 8 "
M12 16 ~ 300 mm  7/16 " 3/4 ~ 8 "
M14 20 ~ 300 mm  1/2 " 3/4 ~ 8 "
M16 25 ~ 300 mm  9/16 " 1 ~ 8 "
M18 25 ~ 300 mm  5/8 " 1 ~ 12 "
M20 25 ~ 300 mm  3/4 " 1 ~ 12 "
M22 40 ~ 300 mm  7/8 " 1 1/2 ~ 12 "
M24 50 ~ 250 mm  1 " 2 ~ 10 "
Draws
Standard Sizes:
Item Size Item Size
M06 6 ~ 150 mm  1/4 " 1/2 ~ 6 "
M08 10 ~ 200 mm  5/16 " 1/2 ~ 6 "
M10 12 ~ 300 mm  3/8 " 1/2 ~ 8 "
M12 16 ~ 300 mm  7/16 " 3/4 ~ 8 "
M14 20 ~ 300 mm  1/2 " 3/4 ~ 8 "
M16 25 ~ 300 mm  9/16 " 1 ~ 8 "
M18 25 ~ 300 mm  5/8 " 1 ~ 12 "
M20 25 ~ 300 mm  3/4 " 1 ~ 12 "
M22 40 ~ 300 mm  7/8 " 1 1/2 ~ 12 "
M24 50 ~ 250 mm  1 " 2 ~ 10 "
