Stub end

+ Stainless stub end	+ Carbon steel Stub end
+ Lap joint stub end	+ Lap joint stub end

Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint.

Our high quality stub ends (Butt weld fittings ) are tested and verified for durability, accuracy and precision. The stub ends are manufactured in all standard dimensions. The stub ends are provided with a standard weld bevel and can be available in squared, flanged, victaulic and threaded ends. We offer stub ends at highly competitive prices.

Keyword: Stub ends, Lap joint stub end, Lap joints, Vanstone Flared laps

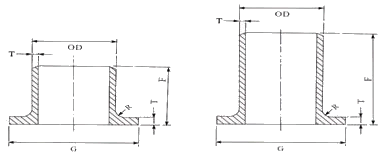

Stub end Draws

Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6,316L, 304L, 321, 321H.
Manufacturing standard: ASME/ANSI B16.9, JIS, DIN, EN, API 5L, etc.
Surface treatment:Shot blasted, rust-proof black oil

Usage: Petroleum, Chemical, Power, Gas, Metallurgy, Ship-building, Construction, ect.
Packing: Plywood Case/ Pallet/ other
