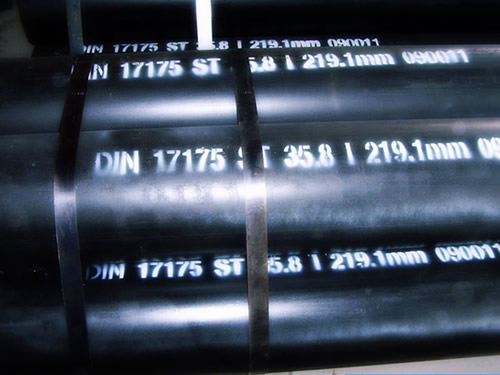

DIN 17175 Seamless Tubes
DIN 17175 seamless tubes are used in boiler installations, high-pressure pipelines and tank construction and special machinery for both high temperature and high-pressure devices.
DIN 17175 alloy steel pipe is just a big class,and it has many classifivations. We mainly produce DIN 17175 ST35.8, DIN 17175 ST45.8, and 10CrMo910 steel pipes. These seamless steel tubes are just a big class,and it has many classifivations.
We mainly produce DIN 17175 ST35.8, DIN 17175 ST45.8, and 10CrMo910 steel pipes.
Steel grade:
- DIN17175 St35.8
- DIN17175 St45.8
- 15Mo3
- 13CrMo44
- 10CrMo910
Chemical Compositions of DIN 17175 steel pipes (%)
| Grade | C | Si | Mn | P | S | Cr | Mo |
| St35.8 | ≤0.17 | 0.10-0.35 | 0.40-0.80 | ≤0.040 | ≤0.040 | / | / |
| St45.8 | ≤0.21 | 0.10-0.35 | 0.40-1.20 | ≤0.040 | ≤0.040 | / | / |
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | ≤0.035 | ≤0.035 | / | 0.25-0.35 |
| 13CrMo44 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | ≤0.035 | ≤0.035 | 0.70-1.10 | 0.46-0.65 |
| 10CrMo910 | 0.08-0.15 | ≤0.50 | 0.40-0.70 | ≤0.035 | ≤0.035 | 0.20-0.25 | 0.90-1.20 |
Mechanical Properties of DIN17175 steel pipe
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation(%) |
| St35.8 | ≥235 | 360-480 | 25 |
| St45.8 | ≥255 | 410-530 | 21 |
| 15Mo3 | ≥275 | 450-600 | 20 |
| 13CrMo44 | ≥290 | 440-590 | 20 |
| 10CrMo910 | ≥280 | 450-600 | 18 |
Packing:
- Inner packing:Caps on two ends of every pipe
- Packing: Bare/bundles/crates/crate protection at the both sides of tubes or as per customers’ requirements .
- Surface treatment:Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
- Marking: as per customer’s requirement
Read more:
- DIN: Deutsche Industrie Normen (=German Industry Standard)
